1993-2002 Chevrolet Camaro 17x9.5 Gloss Black Machined Lip C5 Z06 Style Replica Wheel - CV04
✅ Fits:
- 1993–2002 Chevrolet Camaro (4th Gen) — front or rear — all trims (Base, RS, Z28 and SS, including the 30th and 35th Anniversary cars)
Style only: “C5 Z06 Style” describes how this wheel looks — it copies the design of the 2001–2004 C5 Corvette Z06 factory wheel. It does not describe the wheel's size. This wheel is sized for the Camaros listed above.
Brakes: OE Wheels lists this wheel for 1993–2002 Camaros, including the 1998–2002 cars with the larger C5 Corvette-family front brakes.

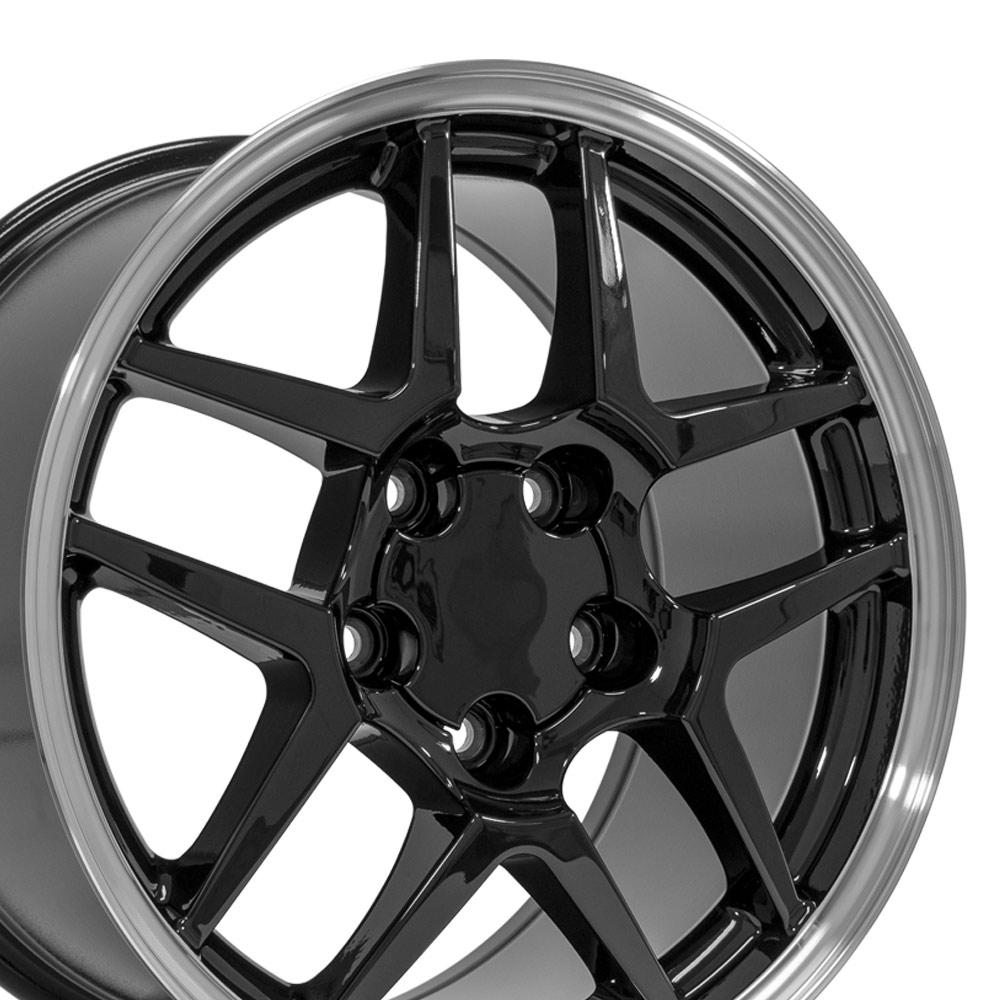

The OE Wheels CV04 recreates the look of the 2001–2004 C5 Corvette Z06 factory wheel. It is a one-piece aluminum alloy wheel with a gloss black machined lip finish, built on the factory Camaro bolt pattern and center bore. Sold individually — order four for a full set.
Specifications
| Spec | This wheel |
|---|---|
| Part number | CV04-17095-5475-54BM |
| Wheel size | 17x9.5″ |
| Position | Front or rear |
| Bolt pattern | 5x120.65mm (5x4.75″) |
| Offset | +54mm |
| Backspacing | 7.38″ |
| Center bore | 70.3mm (hub-centric to factory) |
| Load rating | 1,400 lbs per wheel |
| Lug seat | 60° conical (M12x1.5 thread on this car) |
| Wheel weight | 21 lbs |
| Finish | Gloss Black Machined Lip |
| Construction | One-piece aluminum alloy |
| Center cap | Center cap included. Your factory GM center caps will also fit. |
Compare to your factory wheels
Find your Camaro below and compare its factory wheel to this one. Backspacing is calculated the same way for every row (rim width + 1″ for the flanges, ÷ 2, plus offset), so the numbers compare directly. Your factory tire sizes are also printed on the tire placard in the driver's door jamb.
| Your Camaro | Position | Factory wheel | Offset | Backspacing | Factory tire | This wheel vs. factory |
|---|---|---|---|---|---|---|
| 1993–2002 Base / RS (16″ alloy) | Front | 16x8 | +55mm | 6.67″ | P215/60R16 | 1″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1993–2002 Base / RS (16″ alloy) | Rear | 16x8 | +55mm | 6.67″ | P215/60R16 | 1″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1993–2002 Z28 | Front | 16x8 | +55mm | 6.67″ | P245/50ZR16 | 1″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1993–2002 Z28 | Rear | 16x8 | +55mm | 6.67″ | P245/50ZR16 | 1″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1998–2002 SS | Front | 17x9 | +50mm | 6.97″ | P275/40ZR17 | 0.5″ wider; 0.1″ further out toward the fender; 0.4″ closer to the brakes/suspension |
| 1998–2002 SS | Rear | 17x9 | +50mm | 6.97″ | P275/40ZR17 | 0.5″ wider; 0.1″ further out toward the fender; 0.4″ closer to the brakes/suspension |
Good to know
- OE Wheels guarantees fitment on stock-equipped vehicles only (factory brakes, suspension and body).
- Use 60° conical-seat lug nuts (M12x1.5).
- OE Wheels also lists this wheel for: Chevrolet Corvette 1988-1996, Chevrolet Corvette (front only) 1997-2004, Pontiac Firebird 1993-2002.
- Not sure which Camaro you have? Send us your year, trim and the tire sizes from your door-jamb placard and we will confirm fitment before you order. Our Camaro Brake Guide also shows how to identify your brakes.
