2010-2024 Chevrolet Camaro 20x8.5 Satin Black ZL1 Style Replica Wheel - Not for ZL1 - CV25
✅ Fits:
- 2010–2015 Chevrolet Camaro (5th Gen) — front or rear — LS, LT and SS
- 2016–2024 Chevrolet Camaro (6th Gen) — front or rear — LS, LT, LT1 and SS
❌ Does not fit:
- ZL1 (2012–2015) and 2014–2015 Z/28
Style only: “ZL1 Style” describes how this wheel looks — it copies the design of the 2012–2015 Camaro ZL1 factory wheel. It does not describe the wheel's size. This wheel is sized for the Camaros listed above.
6th Gen SS 1LE: 1LE cars use the six-piston J6M front brakes and 20x10/20x11 factory wheels — contact us before ordering for a 1LE.

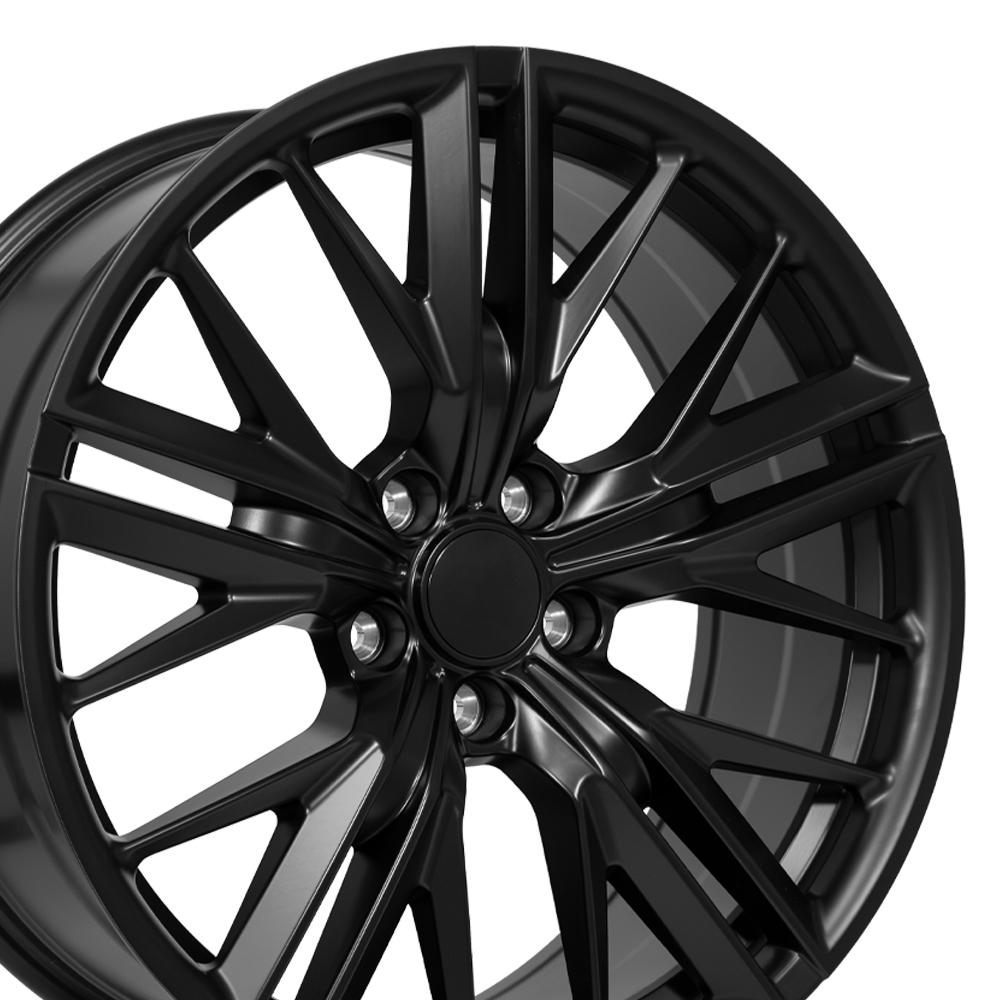

The OE Wheels CV25 recreates the look of the 2012–2015 Camaro ZL1 factory wheel. It is a one-piece aluminum alloy wheel with a powder-coated satin black finish, built on the factory Camaro bolt pattern and center bore. Sold individually — order four for a full set.
Specifications
| Spec | This wheel |
|---|---|
| Part number | CV25-20085-5120-25B1 |
| Wheel size | 20x8.5″ |
| Position | Front or rear |
| Bolt pattern | 5x120mm |
| Offset | +25mm |
| Backspacing | 5.80″ |
| Center bore | 67.1mm (hub-centric to factory) |
| Load rating | 1,795 lbs per wheel |
| Lug seat | 60° conical (M14x1.5 thread on this car) |
| Wheel weight | 31 lbs |
| Finish | Satin Black (powder-coated) |
| Construction | One-piece aluminum alloy |
| Center cap | Center cap included. Your factory GM center caps will also fit. |
Compare to your factory wheels
Find your Camaro below and compare its factory wheel to this one. Backspacing is calculated the same way for every row (rim width + 1″ for the flanges, ÷ 2, plus offset), so the numbers compare directly. Your factory tire sizes are also printed on the tire placard in the driver's door jamb.
| Your Camaro | Position | Factory wheel | Offset | Backspacing | Factory tire | This wheel vs. factory |
|---|---|---|---|---|---|---|
| 2010–2015 RS package / SS (20″) | Front | 20x8 | +35mm | 5.88″ | 245/45ZR20 | 0.5″ wider; 0.6″ further out toward the fender; 0.1″ further from the brakes/suspension |
| 2010–2015 RS package / SS (20″) | Rear | 20x9 | +40mm | 6.57″ | 275/40ZR20 | 0.5″ narrower; 0.3″ further out toward the fender; 0.8″ further from the brakes/suspension |
| 2016–2024 LS / LT (18″) | Front | 18x8.5 | +32mm | 6.01″ | 245/50R18 | 2″ larger diameter; 0.2″ further out toward the fender; 0.2″ further from the brakes/suspension |
| 2016–2024 LS / LT (18″) | Rear | 18x8.5 | +32mm | 6.01″ | 245/50R18 | 2″ larger diameter; 0.2″ further out toward the fender; 0.2″ further from the brakes/suspension |
| 2016–2024 LT RS / LT1 / SS (20″) | Front | 20x8.5 | +25mm | 5.73″ | 245/40ZR20 | 0.1″ further in from the fender; 0.1″ closer to the brakes/suspension |
| 2016–2024 LT RS / LT1 / SS (20″) | Rear | 20x9.5 | +39mm | 6.79″ | 275/35ZR20 | 1″ narrower; 1.0″ further from the brakes/suspension |
| 2016–2024 SS 1LE | Front | 20x10 | +20mm | 6.29″ | 285/30ZR20 | Not listed by OE Wheels for this trim |
| 2016–2024 SS 1LE | Rear | 20x11 | +43mm | 7.69″ | 305/30ZR20 | Not listed by OE Wheels for this trim |
Good to know
- OE Wheels guarantees fitment on stock-equipped vehicles only (factory brakes, suspension and body).
- Use 60° conical-seat lug nuts (M14x1.5).
- OE Wheels also lists this wheel for: Cadillac CT5 2019-2026, Cadillac CT6 2016-2025, Cadillac XT4 2019-2026, Cadillac XTS 2013-2019.
- Not sure which Camaro you have? Send us your year, trim and the tire sizes from your door-jamb placard and we will confirm fitment before you order. Our Camaro Brake Guide also shows how to identify your brakes.
