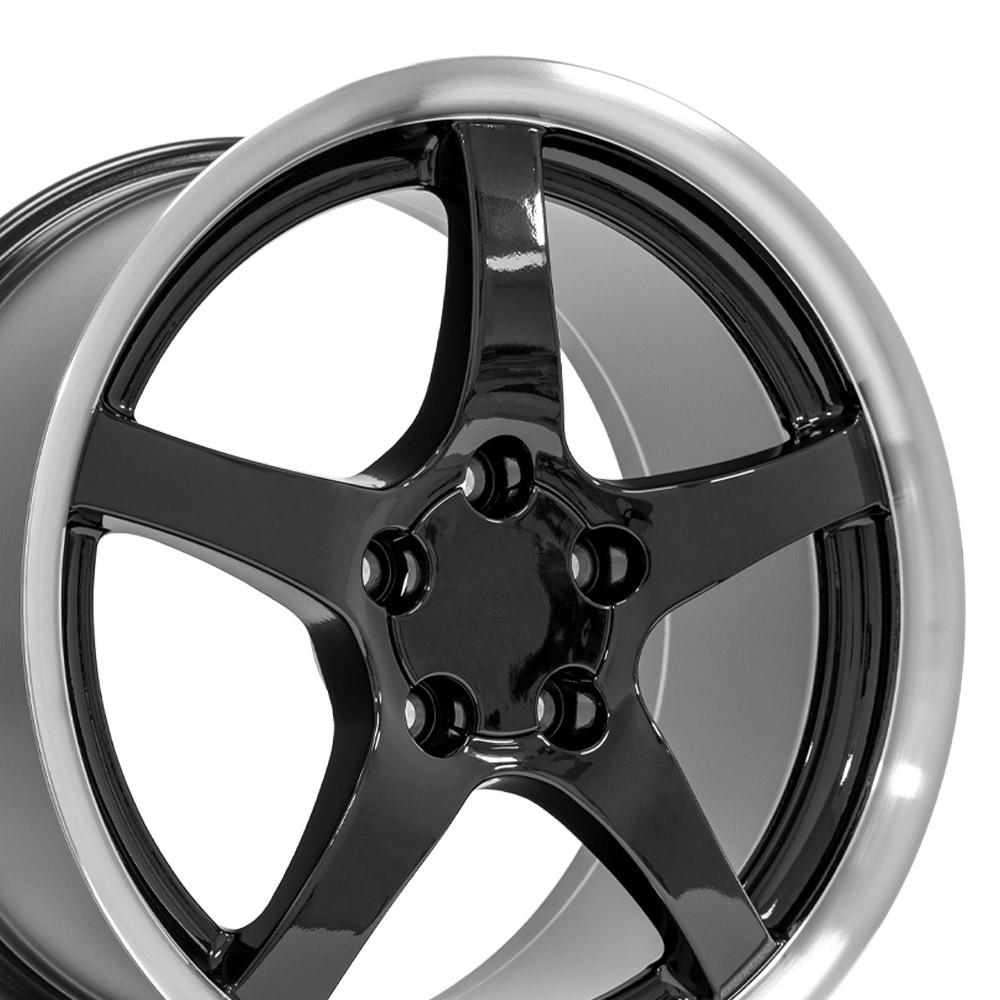

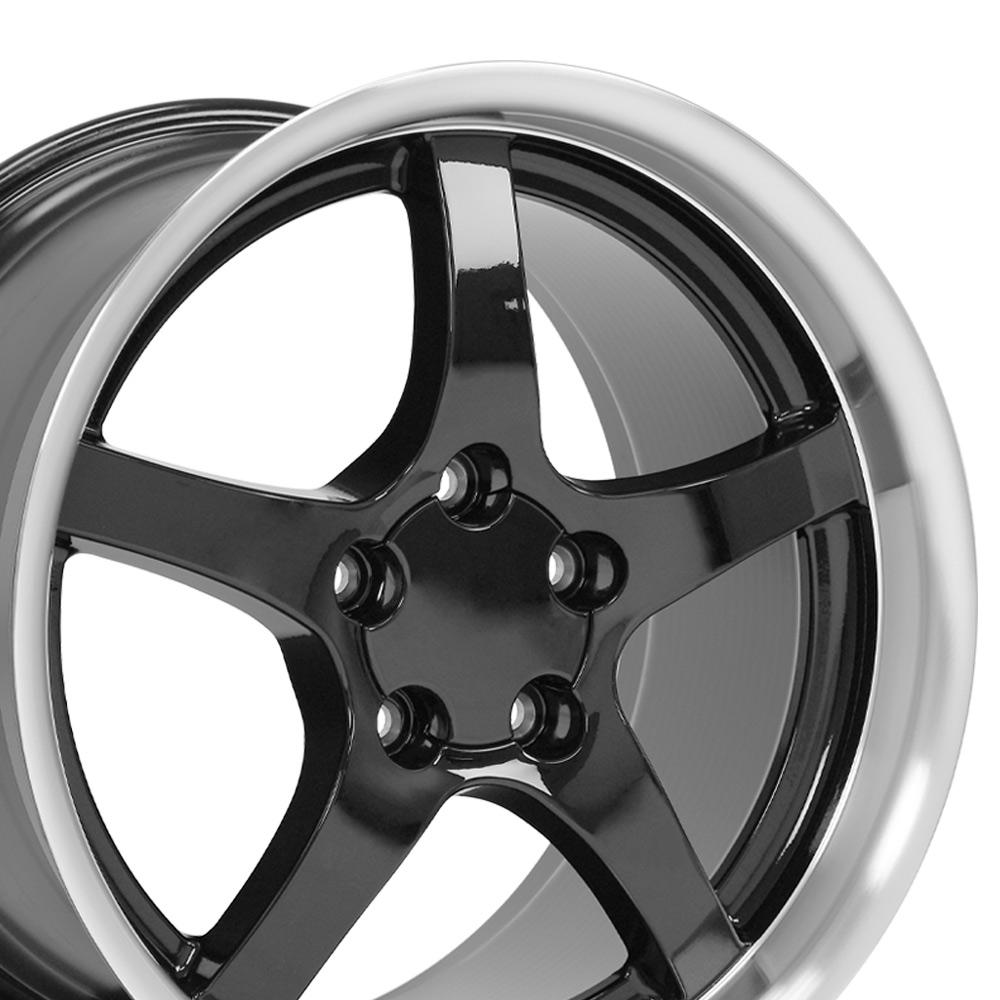

1993-2002 Chevrolet Camaro 18x9.5 & 18x10.5 Gloss Black Machined Lip C5 Style Replica Wheels Staggered Set - CV05
✅ Fits:
- 1993–2002 Chevrolet Camaro (4th Gen) — complete staggered set — all trims (Base, RS, Z28 and SS, including the 30th and 35th Anniversary cars)
Style only: “C5 Style” describes how these wheels look — they copy the design of the 1997–2004 C5 Corvette factory wheel. It does not describe their size. These wheels are sized for the Camaros listed above.
Brakes: OE Wheels notes this deep-dish wheel does not fit cars with upgraded or aftermarket performance brakes.
Staggered fitment: the wider wheels go on the rear axle only. Tires cannot be rotated front-to-rear.
This staggered set includes two 18x9.5 front wheels and two 18x10.5 rear wheels — the OE Wheels CV05, one-piece aluminum alloy replica wheels built on the factory Camaro bolt pattern and center bore. All four wheels are gloss black machined lip. The set is priced exactly the same as buying the four wheels individually — it simply puts the correct front and rear wheels in your cart together.
Specifications
| Spec | Front (×2) | Rear (×2) |
|---|---|---|
| Part number | CV05-D18095-5475-54BM | CV05-D18105-5475-56BM |
| Quantity | 2 | 2 |
| Wheel size | 18x9.5″ | 18x10.5″ |
| Bolt pattern | 5x120.65mm (5x4.75″) | 5x120.65mm (5x4.75″) |
| Offset | +54mm | +56mm |
| Backspacing | 7.38″ | 7.95″ |
| Center bore | 70.3mm | 70.3mm |
| Load rating | 1,400 lbs | 1,400 lbs |
| Wheel weight | 24.5 lbs | 29 lbs |
| Finish | Gloss Black Machined Lip | Gloss Black Machined Lip |
| Center cap | Center cap included. Your factory center caps will NOT fit this wheel. | Center cap included. Your factory center caps will NOT fit this wheel. |
Compare to your factory wheels
Find your Camaro below and compare its factory wheels to this set. Backspacing is calculated the same way for every row (rim width + 1″ for the flanges, ÷ 2, plus offset), so the numbers compare directly.
| Your Camaro | Position | Factory wheel | Offset | Backspacing | Factory tire | This set vs. factory |
|---|---|---|---|---|---|---|
| 1993–2002 Base / RS (16″ alloy) | Front | 16x8 | +55mm | 6.67″ | P215/60R16 | 2″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1993–2002 Base / RS (16″ alloy) | Rear | 16x8 | +55mm | 6.67″ | P215/60R16 | 2″ larger diameter; 2.5″ wider; 1.2″ further out toward the fender; 1.3″ closer to the brakes/suspension |
| 1993–2002 Z28 | Front | 16x8 | +55mm | 6.67″ | P245/50ZR16 | 2″ larger diameter; 1.5″ wider; 0.8″ further out toward the fender; 0.7″ closer to the brakes/suspension |
| 1993–2002 Z28 | Rear | 16x8 | +55mm | 6.67″ | P245/50ZR16 | 2″ larger diameter; 2.5″ wider; 1.2″ further out toward the fender; 1.3″ closer to the brakes/suspension |
| 1998–2002 SS | Front | 17x9 | +50mm | 6.97″ | P275/40ZR17 | 1″ larger diameter; 0.5″ wider; 0.1″ further out toward the fender; 0.4″ closer to the brakes/suspension |
| 1998–2002 SS | Rear | 17x9 | +50mm | 6.97″ | P275/40ZR17 | 1″ larger diameter; 1.5″ wider; 0.5″ further out toward the fender; 1.0″ closer to the brakes/suspension |
Good to know
- OE Wheels guarantees fitment on stock-equipped vehicles only (factory brakes, suspension and body).
- Install the 18x9.5 wheels on the front and the 18x10.5 wheels on the rear. Use 60° conical-seat lug nuts (M12x1.5).
- Not sure which Camaro you have? Send us your year, trim and the tire sizes from your door-jamb placard and we will confirm fitment before you order.
